Stanford researchers develop new semiconductor that is as flexible as skin and easily degradable

In addition to the biodegradable polymer, the team developed a new type of electrical component and a substrate material that attaches to the entire electronic component

19 Jul 2017 | Editor

Researchers at Stanford University - from the Zhenan Bao research group - have developed a new semiconductor that is as flexible as skin and easily degradable. It could have diverse medical and environmental applications, without adding to the mounting pile of global electronic waste.

The Stanford researchers see degradable electronics as the answer to dealing with the ever rising amount of electronic waste created as electronics become increasingly pervasive in our lives – from smart phones to wearable sensors. A United Nations Environment Program report found that almost 50 million tons of electronic waste were thrown out in 2017—more than 20 percent higher than waste in 2015.

In their recently published paper the researchers described how skin is stretchable, self-healable and also biodegradable – an attractive list of characteristics for electronics. Explaining how the team created a flexible electronic device that can easily degrade just by adding a weak acid like vinegar.

Stanford University - A newly developed flexible, biodegradable semiconductor

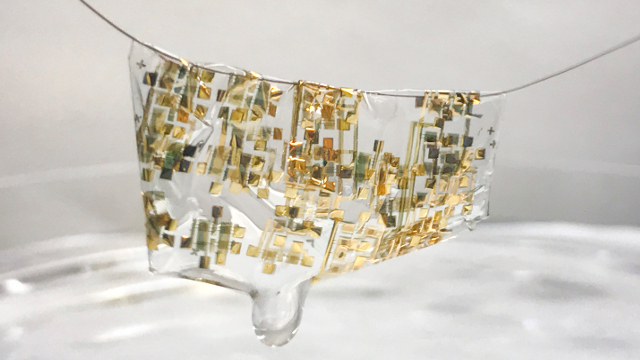

Figure: Stanford University - A newly developed flexible, biodegradable semiconductor

“In my group, we have been trying to mimic the function of human skin to think about how to develop future electronic devices”

“We have achieved the first two [flexible and self-healing], so the biodegradability was something we wanted to tackle.”

Zhenan Bao, Professor of Chemical Engineering and Material Science and Engineering at Stanford University

The researchers said that creating a robust material that is both a good electrical conductor and biodegradable was a challenge, considering traditional polymer chemistry.

“This is the first example of a semiconductive polymer that can decompose,”

Ting Lei, lead author and a postdoctoral fellow working with Bao

In addition to the polymer – essentially a flexible, conductive plastic – the team developed a degradable electronic circuit and a new biodegradable substrate material for mounting the electrical components. This substrate supports the electrical components, flexing and molding to rough and smooth surfaces alike. When the electronic device is no longer needed, the whole thing can biodegrade into nontoxic components.

Zhenan Bao, a professor of chemical engineering and materials science and engineering, had previously created a stretchable electrode modeled on human skin. That material could bend and twist in a way that could allow it to interface with the skin or brain, but it couldn’t degrade. That limited its application for implantable devices and contributed to waste.

“We have been trying to think how we can achieve both great electronic property but also have the biodegradability,” Bao said.

Eventually, the team found that by tweaking the chemical structure of the flexible material it would break apart under mild stressors.

“We came up with an idea of making these molecules using a special type of chemical linkage that can retain the ability for the electron to smoothly transport along the molecule,” “But also this chemical bond is sensitive to weak acid – even weaker than pure vinegar.”

Zhenan Bao, Professor of Chemical Engineering and Material Science and Engineering at Stanford University

The result was a material that could carry an electronic signal but break down without requiring extreme measures.

In addition to the biodegradable polymer, the team developed a new type of electrical component and a substrate material that attaches to the entire electronic component. Electronic components are usually made of gold. But for this device, the researchers crafted components from iron.

The researchers created the substrate, which carries the electronic circuit and the polymer, from cellulose. Cellulose is the same substance that makes up paper. But unlike paper, the team altered cellulose fibers so the “paper” is transparent and flexible, while still breaking down easily. The thin film substrate allows the electronics to be worn on the skin or even implanted inside the body.

From implants to plants The combination of a biodegradable conductive polymer and substrate makes the electronic device useful in a plethora of settings – from wearable electronics to large-scale environmental surveys with sensor dusts.

“We envision these soft patches that are very thin and conformable to the skin that can measure blood pressure, glucose value, sweat content,”

Zhenan Bao, Professor of Chemical Engineering and Material Science and Engineering at Stanford University

According to the researchers a person could wear a specifically designed patch for a day or week, then download the data. This short-term use of disposable electronics seems a perfect fit for a degradable, flexible design.

And it’s not just for skin surveys: the biodegradable substrate, polymers and iron electrodes make the entire component compatible with insertion into the human body. The polymer breaks down to product concentrations much lower than the published acceptable levels found in drinking water.

Although the polymer was found to be biocompatible, Bao said that more studies would need to be done before implants are a regular occurrence.

Biodegradable electronics have the potential to go far beyond collecting heart disease and glucose data. These components could be used in places where surveys cover large areas in remote locations.

The researchers described a "research" scenario where biodegradable electronics are dropped by airplane over a forest to survey the landscape.

“It’s a very large area and very hard for people to spread the sensors,” he said. “Also, if you spread the sensors, it’s very hard to gather them back. You don’t want to contaminate the environment so we need something that can be decomposed.”

Ting Lei, lead author and a postdoctoral fellow working with Bao

Instead of plastic littering the forest floor, the sensors would biodegrade away.

As the number of electronics increase, biodegradability will become more important.

Lei is excited by their advancements and wants to keep improving performance of biodegradable electronics.

“We currently have computers and cell phones and we generate millions and billions of cell phones, and it’s hard to decompose.” “We hope we can develop some materials that can be decomposed so there is less waste.”

Ting Lei, lead author and a postdoctoral fellow working with Bao

The research was funded by the Air Force Office for Scientific Research; BASF; Marie Curie Cofund; Beatriu de Pinós fellowship; and the Kodak Graduate Fellowship.

Biocompatible and totally disintegrable semiconducting polymer for ultrathin and ultralightweight transient electronics

Ting Leia | Ming Guanb | Jia Liua | Hung-Cheng Lina | Raphael Pfattnera | Leo Shawa | Allister F. McGuirec | Tsung-Ching Huangd | Leilai Shaoe | Kwang-Ting Chenge | Jeffrey B.-H. Toka | Zhenan Baoa

Edited by John A. Rogers | University of Illinois, Urbana, IL |approved April 4, 2017 | (received for review January 26, 2017) | doi: 10.1073/pnas.1701478114

Significance

Organic electronics, particularly polymers, can be synthesized and processed with low temperatures and, more importantly, have the potential to be environmentally benign candidates for electronic applications. However, there has been no report of totally decomposable polymer semiconductors. Their availability will enable low-cost and fully disintegrable transient electronics. We have developed an innovative concept based on imine chemistry that allows totally disintegrable and biocompatible semiconducting polymers. Using an ultrathin biodegradable substrate, we successfully fabricated polymer transistors and logic circuits that show high performance and are ultralightweight, but they can be fully disintegrable. Our work significantly advances organic materials to enable environmentally friendly and biointegrated electronic applications.

Abstract

Increasing performance demands and shorter use lifetimes of consumer electronics have resulted in the rapid growth of electronic waste. Currently, consumer electronics are typically made with nondecomposable, nonbiocompatible, and sometimes even toxic materials, leading to serious ecological challenges worldwide. Here, we report an example of totally disintegrable and biocompatible semiconducting polymers for thin-film transistors. The polymer consists of reversible imine bonds and building blocks that can be easily decomposed under mild acidic conditions. In addition, an ultrathin (800-nm) biodegradable cellulose substrate with high chemical and thermal stability is developed. Coupled with iron electrodes, we have successfully fabricated fully disintegrable and biocompatible polymer transistors. Furthermore, disintegrable and biocompatible pseudo-complementary metal–oxide–semiconductor (CMOS) flexible circuits are demonstrated. These flexible circuits are ultrathin (<1 μm) and ultralightweight (∼2 g/m2) with low operating voltage (4 V), yielding potential applications of these disintegrable semiconducting polymers in low-cost, biocompatible, and ultralightweight transient electronics.
