Fraunhofer FEP fabricates glass-on-glass lamination for large-area OLEDs right from the roll

Fraunhofer FEP has had success not only in applying OLEDs to flexible ultra-thin glass, but also in encapsulating the devices using an additional thin glass layer in a single roll-to-roll manufacturing step

6 May 2016 | Editor

Fraunhofer FEP has fabricated glass-on-glass lamination for large-area OLEDs right from the roll

The Fraunhofer Institute for Organic Electronics, Electron Beam and Plasma Technology FEP has announced they have fabricated on ultra-thin glass and encapsulated with a ultra-thin glass foil in the same process.

The Researchers said that OLEDs have already found acceptance as a light source in first luminaires on the market on rigid glass. However, far larger shares of the market could be acquired, if flexible large-area OLEDs could be manufactured cost-effectively with consistent quality. Scientists are working feverishly on this worldwide.

Large-area OLEDs could be employed not only in innovative furniture designs, but also deliver good service in other sectors requiring specialized curved design, such as architectural lighting and automotive, for example. The organic layers of the OLED are sensitive to oxygen and moisture and needs to be well protected. Flexible ultra-thin glass meets the stringent requirements of a hermetic barrier, free of defects and pinhole freedom for large OLED emissive surfaces.

The Fraunhofer FEP has had success not only in applying OLEDs to flexible ultra-thin glass, but also in encapsulating the devices using an additional thin glass layer in a single roll-to-roll manufacturing step. A high-performance adhesive was applied over the entire surface of the encapsulating glass in advance in collaboration with tesa SE. This adhesive glass film is subsequently laminated to the OLED-coated ultra-thin glass.

Making dependable electrical connections to the ultra-thin glass without damaging it was especially challenging. The scientists will be working with customers in the future on non-destructive techniques of integration.

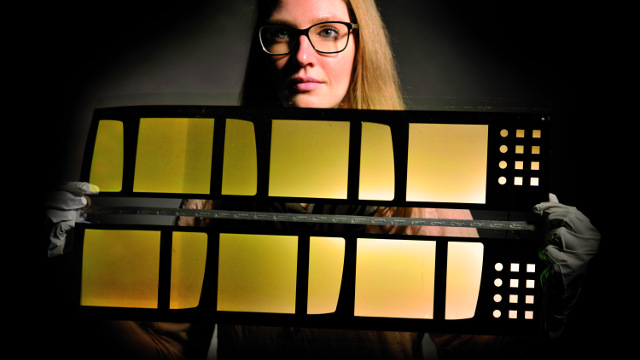

Fraunhofer FEP - Flexible OLED panel

Figure: Fraunhofer FEP - Flexible OLED panel

Dr. Stefan Mogck, Head of Roll-to-Roll Organic Technology at Fraunhofer FEP, said, "But encapsulation is not the only challenge for flexible large area OLEDs that need to remain stable over long periods. In order to get them to emit, a highly conductive, transparent oxide layer with good light coupling properties is required and reliable electrical contacts to the emitting layers with low contact resistance is essential." Stefan added, "We are proud of having optimized our process, and that these layers can be applied very homogenously to the flexible glass."

Fraunhofer FEP offers its industrial partners process and product development over the complete value chain customized to their requirements. Processes for treatment and coating flexible glass for customer-specific emissive surfaces in different sizes and colours can be developed, and even flexible OLED prototypes fabricated at customers' requests. In addition, the Institute can develop matching driver circuitry for supplying power to the prototypes.

Fraunhofer FEP will be presenting this type of OLED at AIMCAL 2016, in this case based on G-Leaf ultra-thin glass by Nippon Electric Glass Co Ltd. (NEG). A 10 cm × 25 cm emissive surfaces will be on display.

www.fep.fraunhofer.de


About Fraunhofer FEP

The Fraunhofer Institute for Organic Electronics, Electron Beam and Plasma Technology FEP works on innovative solutions in the fields of vacuum coating, surface treatment as well as organic semiconductors. The core competences electron beam technology, sputtering and plasma-activated deposition, high-rate PECVD as well as technologies for the organic electronics and IC/system design provide a basis for these activities.

Thus, Fraunhofer FEP offers a wide range of possibilities for research, development and pilot production, especially for the processing, sterilization, structuring and refining of surfaces as well as OLED microdisplays, organic and inorganic sensors, optical filters and flexible OLED lighting.

Our aim is to seize the innovation potential of the electron beam, plasma technology and organic electronics for new production processes and devices and to make it available for our customers. COMEDD (Center for Organics, Materials and Electronic Devices Dresden) with all known activities in organic electronics is now acting as a new business unit at Fraunhofer FEP, Dresden, Germany.

Source: Fraunhofer FEP
