Ardeje launches OriginD100 digital printing platform

The Ardeje Origin D100 is suitable for a wide range of applications - printing research, process development and prototyping/low production volumes

30 Sep 2015 | Editor

Ardeje has announced its latest smart and flexible digital printing platform dedicated to R&D process developments and prototyping. The Origin D100 will be showcased at the forthcoming Inkjet Conference and Exhibition on 7th and 8th October 2015 taking place in Düsseldorf.

According to the company the Ardeje OriginD100 have been conceived with a total disruptive innovation approach, and has three key features:

  • A printer easy to operate:- the Ardeje OriginD100 is endowed of an ergonomic and intuitive software sheltered by a designed equipment conceived to facilitate Operators’ manipulations thanks to advanced tools and automated functions
  • An innovative platform allowing unlimited printing strategies:- Ardeje OriginD100 integrates various industrial Drop-On-Demand (DOD) inkjet print heads enlarging capabilities for inks or functional materials jetting. This high accuracy printing equipment is designed to cover the widest possible range of process parameters including :
    • controls of print head setup and jetting parameters
    • print parameters and printing strategies : Single pass, multi pass, scanning printing
    • drying and curing modes
  • Qualified digital printing set-up ready to be implemented in an industrial production line: Ardeje OriginD100 is the most efficient tool towards industrialisation. Based on its own industrial drivers & components, scaling-up for industrial applications is efficient and reliable which reduces time to market.
Ardeje - OriginD100 digital printer<

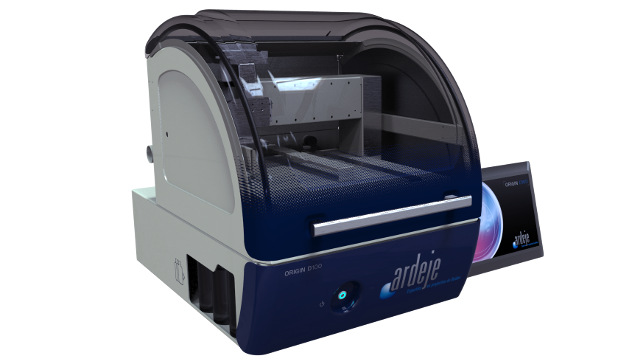

Figure: Ardeje - OriginD100 digital printer

Price starting from 37,500 euros.

From inks to functional material deposition, the Ardeje Origin D100 is suitable for print research, print quality management, process development and prototyping/low production volume for a wide range of applications for example - direct product decoration, material deposition, printed electronics or additive manufacturing.


Technical specifications

PrintheadsVarious piezoelectric DOD technologies integrated in an inkjet printing module with easy and fast change with high accuracy
Inks and functional materialsWater-, solvent-, oil-based inks, UV-curable inks, UV-resins, organic or inorganic and hybrid materials, colloïdal solutions, Sol-gel *
Ink SystemEasy and fast Ink cange / cleaning Low material consumption (down to 5 mL) Direct feed from syringe / Disposable reservoir (syringe type)
Mechanical axis resolution (X/Y)Resolution : 0.5 μm / Repeatability : (+/-) 1 μm / Precision : (+/-) 20 μm
Printing Speed (Y)up to 100 mm/s
Product sizeup to 330 mm x 285 mm x 350 mm (X/Y/Z) *
Substrate holderMechanical indexes
Air systemMeniscus control / purge
HIM / SoftwareIntegrated inkjet and motion control Pre-loaded recipes Printing Module configuration / Printing configuration settings saving Direct wide access to jetting and printing parameters (strategies, resolutions, ...) Tools for quick and easy nozzle check status control Advanced functions
MaintenanceSpitting, manual purge, capping, cleaning
HousingHousing for dust protection and safety Air exhaust connection : Diam. 50 mm
Power SupplySingle phase, 100-240 VAC, 1000W, 50/60 Hz

* dependent on printing module/selected options<

www.ardeje.com


About Ardeje

Ardeje has a deep knowledge and experience in the field of Drop-On-Demand (DOD) inkjet printing technologies and has developed a strong know-how regarding functional fluid jetting. From R&D to production, Ardeje provides a range of services & equipment to speed up your developments.

Our mission statement is to support our customers from "proof-of-concept" up to industrial scale.
