LG Chem make 320 mm x 320 mm OLED lighting panel available commercially, and novel mounting solutions

LG Chem has developed two types of “Mounting Solutions” for easy OLED panel installation with magnetic connections: Rail Connection and Linear Connection

9 Jan 2015 | Editor

According to a recent report on the OLEDNET website LG Chem has made their 320 mm x 320 mm OLED lighting panels available commercially - these are the largest panels currently available in the world. These panels have an efficacy of 60 lm/W, high CR(90) and just 0.88mm in thickness.

In addition LG Chem is reported to have developed two magnetic mounting solutions for OLED panels which LG Chem have named - Rail Connection and Linear Connection.

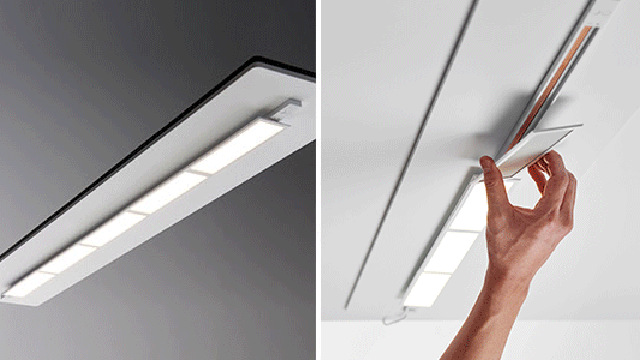

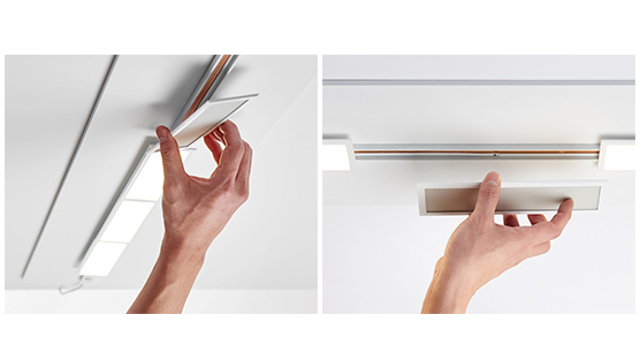

LG Chem - Rail connection mounting system

Figure: LG Chem - Rail connection mounting system

Each 200 mm x 50 mm LG Chem OLED light panel is cased and an integrated DC-DC driver. The AC-DC driver supplies DC to the conductor rail, and each lighting unit is magnetically attached to the rail receiving the power.

LG Chem - Line connection mounting system

Figure: LG Chem - Line connection mounting system

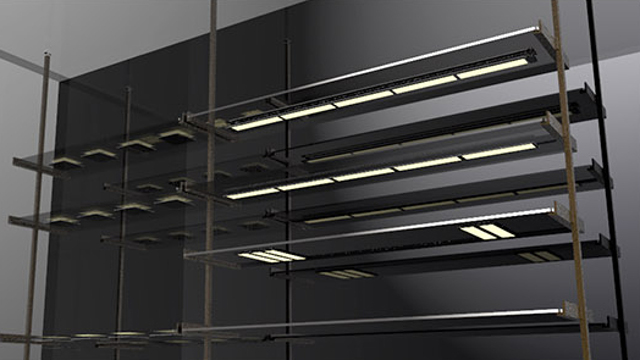

The Linear connection solution also utilised 200 mm x 50 mm OLED panels with chrome-finished casing. Each lighting unit is magnetically connected with other units in a series, and the units are also magnetically attached to the metal surface. When distance between the panels is required, and extension bar can be placed in between.

The mounting solutions can be easily applied anywhere, from retail store shelving to general home furniture.

LG Chem - Line connection mounting system

Figure: LG Chem - Line connection mounting system

The Transparent Electrode uses 320 mm x 110 mm OLED panels. A transparent mesh conductive film, OLED panel and protection film are laminated on a sheet of glass. Hence, OLEDs turn on without direct wiring to the panels; therefore achieve a floating effect. The Transparent Electrode would be a great fit for retail shelving where temperature is a sensitive factor for instance in the cases of cosmetics of food. Different shapes and sizes of OLEDs can be applied diverse design needs.

www.lgchem.com    www.lgoledlight.com    www.olednet.co.kr
